Training and Support Materials

A properly trained dental professional ensures better clinical outcomes. We're committed to ensuring proper training on the usage of our products.

Prepare for the optimal fit

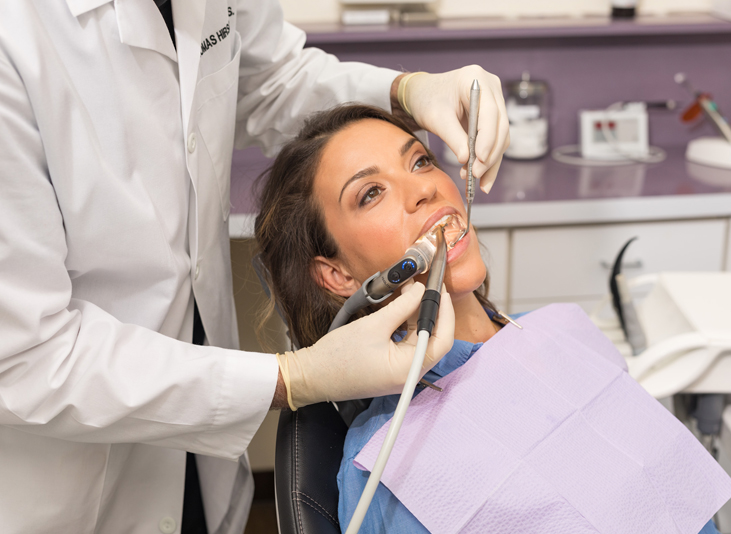

Watch us explain how to properly size the mouthpiece and place the Isolite® dental isolation system into the oral environment.

Introduction to the Isolite system.

Mouthpiece placement in 1-2-3

STEP 1

Hold the sides of the control head with your index finger and thumb. With your other hand, fold the cheek shield onto the tongue retractor. Next, gently slide the folded mouthpiece into the buccal vestibule on the side that will be receiving treatment. Be sure to properly angle the mouthpiece to allow the lower edge of the tongue retractor to move along the buccal edge of the teeth.

STEP 2

Move the bite block onto the occlusal surface of the teeth, just distal to the mandibular cuspid. Instruct the patient to “rest gently” on the bite block to secure.

STEP 3

Place the cheek shield into the buccal vestibule, then move the isthmus onto the retromolar pad behind the maxillary tuberosity. Next, adjust the tongue retractor in the lingual vestibule as needed and move the bite block distally to provide more vertical working room.

Training Materials

Use the Isolite 3 training presentation to help train new team members that join your practice. Taking them through this presentation will help with your long-term success with the Isolite 3 dental isolation system.

Download the Isolite 3 Training Presentation

Isolite 3 Alternate Installation Instructions

If you ordered the temporary configuration of the Isolite 3 without the power supply or Power Vacuum Base, watch this video to learn how to perform the initial installation. The video also shows you how to install the Power Vacuum Base and power supply once those items arrive at your office.

MK0203-086-D
